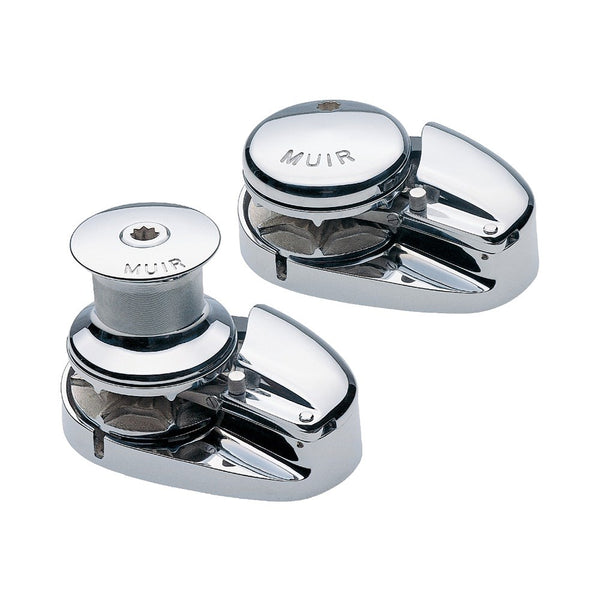

Muir VR3500 / VRC3500 Storm Stainless Steel Vertical Windlass
- Rope chain combination gypsy for rope and chain combination or chain only
- Quick release integrated swivel chain pipe cover
- Gypsy with capstan (VRC) or gypsy with low profile clutch top arrangement (VR)
- Heavy duty marine grade, dual direction motor in 12 Vdc, 24 Vdc, Hydraulic & AC
- Polished Stainless steel components
- Independent gypsy and capstan operation
- Capstan model features heavy duty fluted finish for increased grip
- Self-aligning gearbox / adaptor
- Stainless steel shaft
- Cone clutch / brake
- Stainless steel mounting bolts
- Shaft seal
- Lubricating grease nipple
- Clutch release handle
- Rope Chain Management System (RCMS)
- Installation/Operation booklet
Vessel Length |
15 - 24 m (48 - 77 ft) |
Power Supply |
12 / 24 Vdc / AC Power |
Motor |
1500 W |
Hydraulic Pressure |
10 MPa (1450 psi) |
Hydraulic Flow |
28 L/min (7.5 gal/min) |
Max Load |
1590 kg (3500 lb) |
Work Load |
397 kg (875 lb) |
Amps Work Load |
150 / 85 |
Max Line Speed |
13.5 m / min (44 ft / min) |
Chain Size |
8 - 10 - 13 mm (5/16 - 3/8 - 1/2”) |
Rope Size |
14 - 16 - 19 mm (9/16 - 5/8 - 3/4”) |
Net Weight |
DC VR 42 kg (92 lb)
DC VRC 46 kg (101 lb)
HYD VR 38 kg (84 lb)
HYD VRC 42 kg (92 lb)
|
Manual Operation |
MORS (Optional)
MOS (Optional)
|
