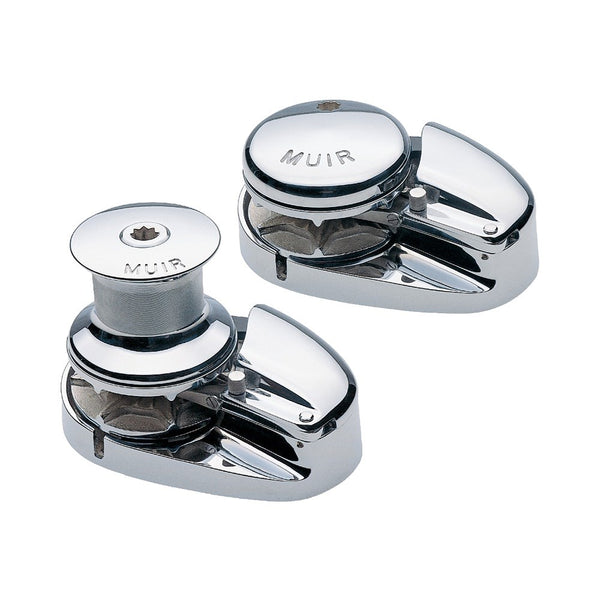

Muir VR2500 / VRC2500 Storm Stainless Steel Vertical Windlass
- Rope chain combination gypsy for rope and chain combination or chain only
- Quick release integrated swivel chain pipe cover
- Gypsy with capstan (VRC) or gypsy with low profile clutch top arrangement (VR)
- Heavy duty marine grade, dual direction motor in 12 Vdc, 24 Vdc, Hydraulic & AC
- Polished Stainless steel components
- Independent gypsy and capstan operation
- Capstan model features heavy duty fluted finish for increased grip
- Self-aligning gearbox / adaptor
- Stainless steel shaft
- Cone clutch / brake
- Stainless steel mounting bolts
- Shaft seal
- Lubricating grease nipple
- Clutch release handle
- Rope Chain Management System (RCMS)
- Installation/Operation booklet
|
Vessel Length
|
14 - 20 m (45 - 64 ft)
|
|
Power Supply
|
12 / 24 Vdc / AC Power
|
|
Motor
|
1200 W
|
|
Hydraulic Pressure
|
10 MPa (1450 psi)
|
|
Hydraulic Flow
|
20 L/min (5.5 gal/min)
|
|
Max Load
|
1136 kg (2500 lb)
|
|
Work Load
|
284 kg (624 lb)
|
|
Amps Work Load
|
120 / 75
|
|
Max Line Speed
|
13.5 m / min (44 ft / min)
|
|
Chain Size
|
8 - 10 - 13 mm (5/16 - 3/8 - 1/2”)
|
|
Rope Size
|
14 - 16 - 19 mm (9/16 - 5/8 - 3/4”)
|
|
Net Weight
|
DC VR 40 kg (88 lb)
DC VRC 44 kg (96 lb)
HYD VR 38 kg (84 lb)
HYD VRC 42 kg (92 lb)
|
|
Manual Operation
|
MORS (Optional)
MOS (Optional)
|
