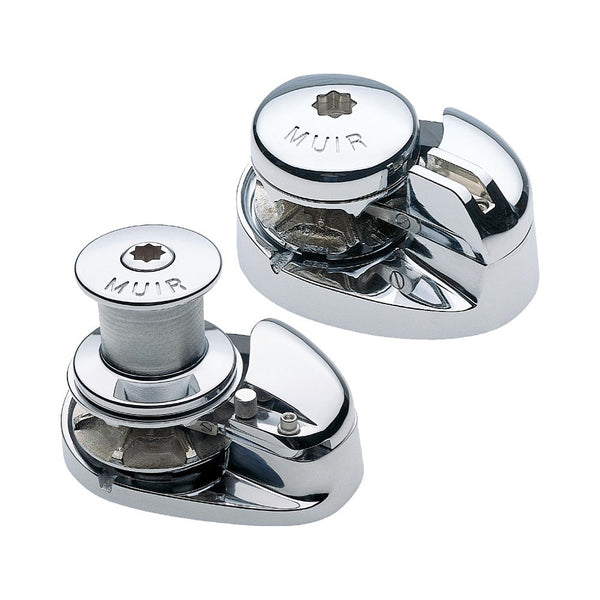

Muir VR1250 / VRC1250 Storm Stainless Steel Vertical Windlass
- Polished stainless steel components
- Rope chain combination gypsy for rope and chain combination or chain only
- Rope Chain Management System (RCMS)
- Quick release integrated swivel chain pipe cover
- Gypsy with low profile clutch top arrangement
- Heavy duty marine grade, dual direction motor in 12Vdc, 24 Vdc and Hydraulic
- Independent gypsy and capstan operation
- Capstan model features heavy duty knurled finish for increased grip
- Quick fit adaptor
- Stainless steel shaft
- Cone clutch / brake
- Stainless steel mounting bolts
- Shaft seal
- Self-lubricating bush
- Clutch release handle
- Installation/Operation booklet
|
Vessel Length
|
10 - 13 m (32 - 42 ft)
|
|
Power Supply
|
12 / 24 Vdc
|
|
Motor
|
1000 W
|
|
Hydraulic Pressure
|
8 MPa (1160 psi)
|
|
Hydraulic Flow
|
15 L/min (4 gal/min)
|
|
Max Load
|
500 kg (1100 lb)
|
|
Work Load
|
125 kg (275 lb)
|
|
Amps Work Load
|
100 / 60
|
|
Max Line Speed
|
15 m / min (48 ft / min)
|
|
Chain Size
|
6 - 8 - 10 mm (1/4 - 9/16 - 5/8”)
|
|
Rope Size
|
12 - 14 - 16 mm (1/2 - 9/16 - 5/8”)
|
|
Net Weight
|
DC VR 15 kg (33 lb)
DC VRC 16.5 kg (37 lb)
HYD VR 15.5 kg (34 lb)
HYD VRC 17 kg (38 lb)
|
