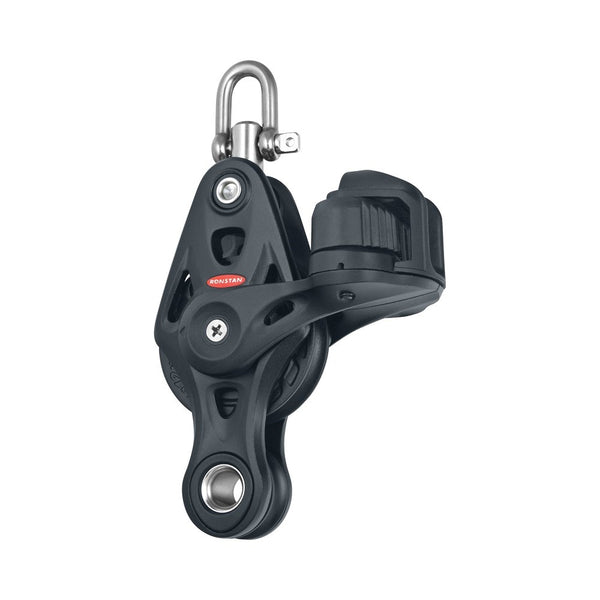

Ronstan Series 60 Ball Bearing Fiddle Core Block, Cleat, Universal Head - RF64520
- Class leading performance and sleek, contemporary styling
- Excellent dynamic and high static load performance
- Less than half the friction of the nearest competitor
- Adjustable cleating angle
- Fitted with high performance C-cleat and fairlead for secure and easy cleating
- Integrated becket through the hub of the lower sheave
- *** Line load through cleat not to exceed 175 kg (385 lb)
Applications
- Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 11 m (36 ft)
- Various control line applications on larger yachts
- Alloy sheave models are available for use with wire
Materials
- Sheaves: UV stabilised Acetal
- Cheek plates & cleat arms: Aluminium alloy
- Ball Bearings: High compression strength carbon black Acetal
- Shackle, post & hub: Grade 316 stainless steel
- Padeye & snap shackle: Grade 15-5PH stainless steel
- Snap shackle: Grade 15-5PH investment cast stainless steel
- Cleat: Fibre reinforced composite
- Cleat: Fibre reinforced composite
Specifications
- Sheave Ø: 60 + 30 mm
- Max. Rope Ø: 12 mm
- Max. Cable Ø: - mm
- Pin Ø: 6.0 mm
- MWL: 1000 *** kg
- BL: 2000 *** kg
- Weight: 490 g
