Lopolight 201-010 Masthead 225° 2 nm LED Navigation Light - Silver
Vessel size: Under 12 m
Light colour: White
Certification: Certified by DNV
Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Mounting: Vertical
Materials: Silver anodised aluminium 25 µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
Operating voltage: 10 - 32 Vdc
IP rating: IP68
Power draw: 2 W
Connection: 0.7 m cable
Current consumption: 80 mA @ 12 Vdc
Min feed wire gauge: 0.5 mm2 (AWG 22)
Size: 74.6 x 28 x 73.2 mm
Weight: 0.42 kg
For more product information, please visit:
- PRODUCT DATA SHEET

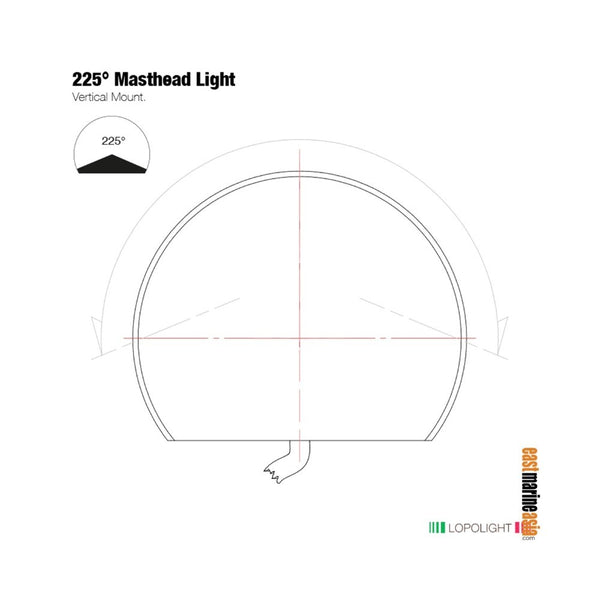

- TECHNICAL DRAWING
SKU: #
