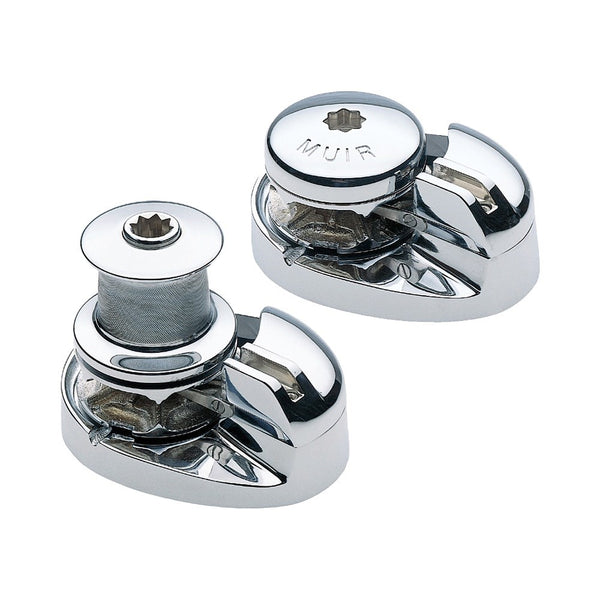

Muir VR600 / VRC600 Storm Stainless Steel Vertical Windlass
- Rope chain combination gypsy for rope and chain combination or chain only
- Rope Chain Management System (RCMS)
- Quick release integrated swivel chain pipe cover
- Gypsy with capstan (VRC) or gypsy with low profile clutch top arrangement (VR)
- Heavy duty marine grade, dual direction motor in 12 Vdc or 24 Vdc
- 316 Stainless steel
- Independent gypsy and capstan operation (VRC model)
- Capstan models feature heavy duty knurled finish for increased grip
- Quick fit adaptor
- Stainless steel shaft
- Cone clutch/brake
- Stainless steel mounting bolts
- Shaft seal
- Lubricating grease nipple
- Clutch release handle
- Installation/Operation booklet
Vessel Length
|
5 - 9 m (16 - 29 ft)
|
Power Supply
|
12 / 24 Vdc
|
Motor
|
600 W
|
Max Load
|
300 kg (660 lb)
|
Work Load
|
75 kg (165 lb)
|
Amps Work Load
|
40 / 80
|
Max Line Speed
|
25 m / min (80 ft / min)
|
Chain Size
|
6 - 7 mm (1/4 - 9/32”)
|
Rope Size
|
12 mm (1/2”)
|
Net Weight
|
VR 12 kg (26 lb) VRC 12.5 kg (28 lb)
|
